Vacuum equipment inevitably becomes contaminated with various liquids that negatively affect the running of the vacuum system and
the gas flow by either being sucked into the vacuum in a vaporized form or liquid state. Taisei Giken's patented Separator TRAPPACK technology is designed
specifically to collect and quarantine these liquids.
How does the TRAPPACK remove liquids from gas streams?
The Gas Liquid Separator TRAPPACK is composed
of magnetic fibers with adsorptive properties capable of adsorbing various
liquids and separating them. Due to the Elements very low density, continuous
separation and collection of unwanted liquids from the gas line is possible while only
having very little pressure loss.
By installing the TRAPPACK to the fore line of the vacuum pump the collection
and separation of any unwanted liquid can be enforced. Installations at the
exhaust line are used to trap oil mist: This is helpful for machines that
utilize brake fluid or detergent agents.

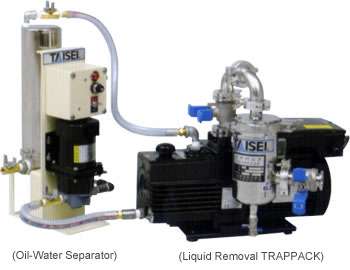

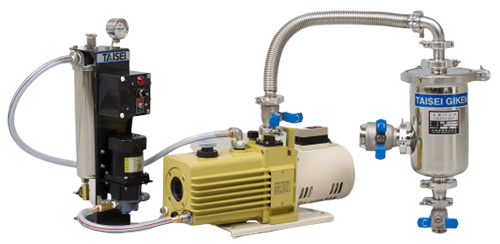

System Construction
Function
Trap unwanted liquid
through magnetic adsorption
Continuous Separation and collection of liquids
Due to the
Filters low density, very little pressure loss occurs.
